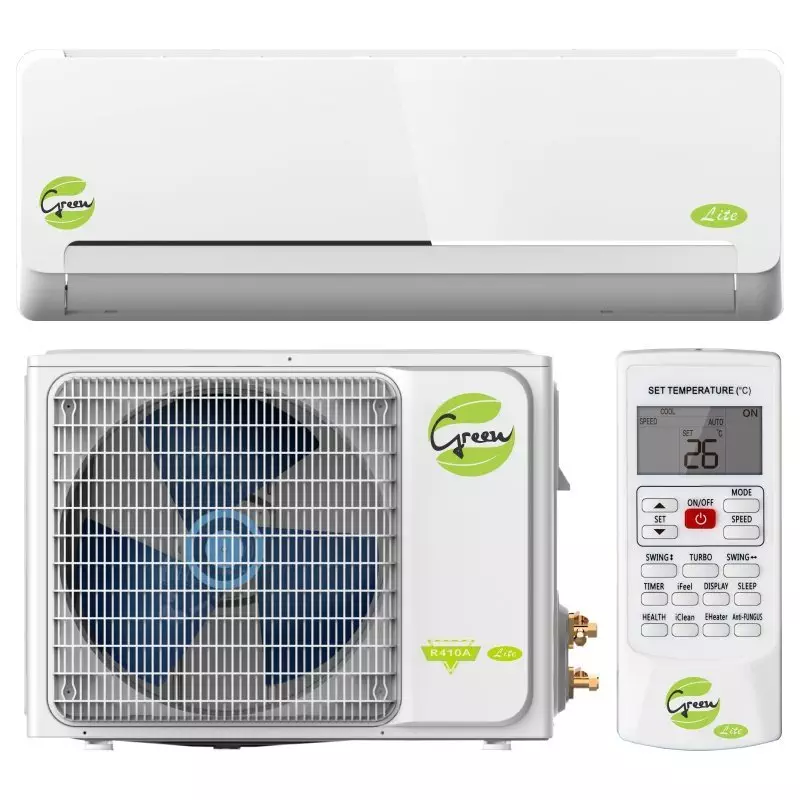

9,000 BTU/HR Midwall Split

The 9000 BTU Midwall Split from Green Air-Conditioning is best suited for home and office use. This aircon will work optimal in rooms with a floor size of up to 15m².

Specifications Summary

  • 9,000 BTU/HR Midwall Split
  • ACM-25H09FV-ZAN
  • R410a
  • Super Quiet Design
Category:
Type of Unit Midwall Split
Model ACM-25H09FV-ZAN Number ACM-25H09FV-ZAN
Power Supply V~,Hz,Ph ,220-240/50/1
Capacity Cooling Btu/h 9000
W 2650
Heating Btu/h 9000
W 2640
Power Input Cooling W 880
Heating W 700
Operating Current Cooling A 4.0
Heating A 3.3
EER W/W 3.01
COP W/W 3.77
Air Flow Indoor unit m³/h 550
Noise Level Indoor unit dB(A) 42
Outdoor unit dB(A) 52
Net Dimension (W x D x H) Indoor unit mm 750x285x200
Outdoor unit mm 660x500x240
Net Weight IDU/ODU Kg 8/25
Packing Dimension (W x D x H) Indoor unit mm 820x347x277
Outdoor unit mm 780x570x345
Refrigerant type/weight g R410A/610g
Max discharge/suction pressure Mpa 4.15/1.15
Liquid Side/Gas Side mm/inch 6.35/9.52 (1/4" / 1/8")
