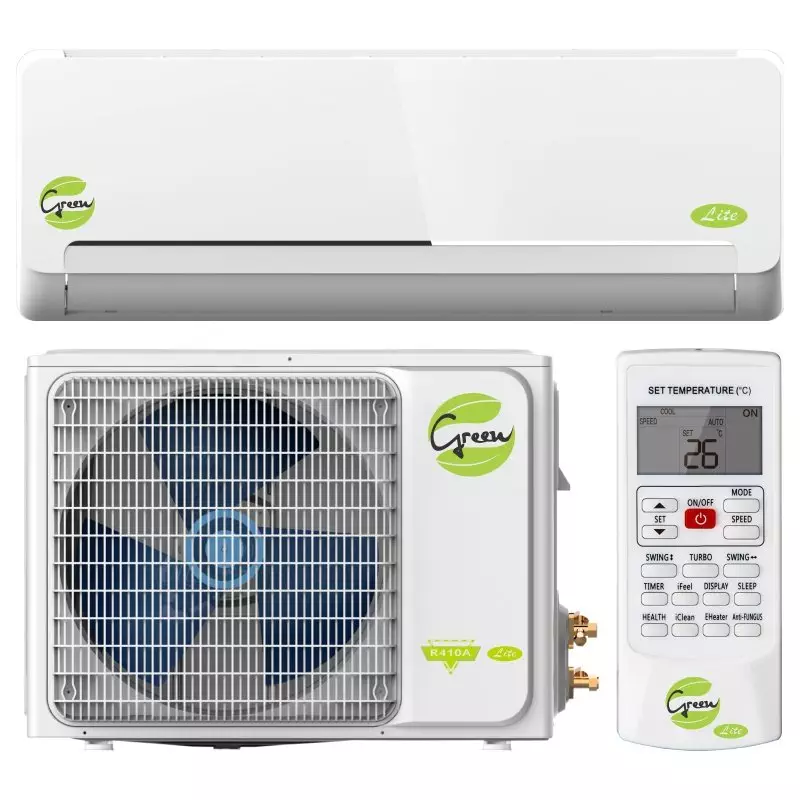

18,000 BTU/HR Midwall Split
The 18000 BTU Midwall Split from Green Air-Conditioning is best suited for home and office use. This aircon will work optimal in rooms with a floor size of up to 30m².
Specifications Summary
- 18,000 BTU/HR Midwall Split
- ACM-51H18FV-ZAN
- R410a
- Super Quiet Design
| Type of Unit | Midwall Split | |||
|---|---|---|---|---|
| Model ACM-51H18FV-ZAN | Number | ACM-51H18FV-ZAN | ||
| Power Supply | V~,Hz,Ph | 220-240/50/1 | ||
| Capacity | Cooling | Btu/h | 18000 | |
| W | 4800 | |||
| Heating | Btu/h | 1800 | ||
| W | 4900 | |||
| Power Input | Cooling | W | 1550 | |
| Heating | W | 1450 | ||
| Operating Current | Cooling | A | 7 | |
| Heating | A | 6.5 | ||
| EER | W/W | 3.1 | ||
| COP | W/W | 3.38 | ||
| Air Flow | Indoor unit | m³/h | 900 | |
| Noise Level | Indoor unit | dB(A) | 48 | |
| Outdoor unit | dB(A) | 56 | ||
| Net Dimension (W x D x H) | Indoor unit | mm | 900x310x225 | |
| Outdoor unit | mm | 860x545x315 | ||
| Net Weight | IDU/ODU | Kg | 11.5/38 | |
| Packing Dimension (W x D x H) | Indoor unit | mm | 970x382x302 | |
| Outdoor unit | mm | 920x620x400 | ||
| Refrigerant type/weight | g | R410A/1080g | ||
| Max discharge/suction pressure | Mpa | 4.15/1.15 | ||
| Liquid Side/Gas Side | mm/inch | 6.35/12.70 (1/4" / 1/2") | ||
