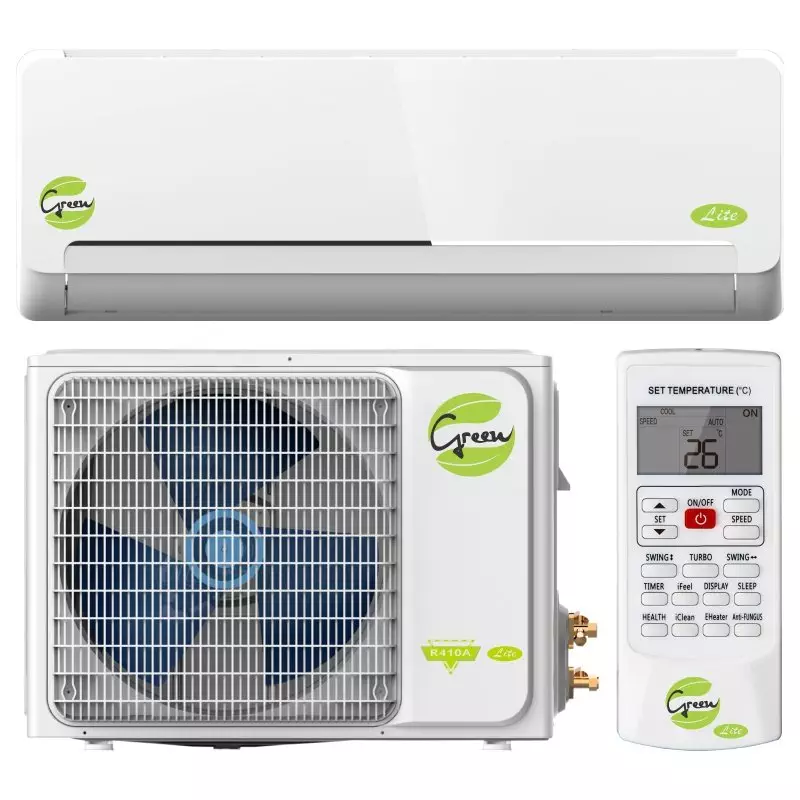

12,000 BTU/HR Midwall Split
The 12000 BTU Midwall Split from Green Air-Conditioning is best suited for home and office use. This aircon will work optimal in rooms with a floor size of up to 20m².
Specifications Summary
- 12,000 BTU/HR Midwall Split
- ACM-32H12FV-ZAN
- R410a
- Super Quiet Design
| Type of Unit | Midwall Split | |||
|---|---|---|---|---|
| Model ACM-32H12FV-ZAN | Number | ACM-32H12FV-ZAN | ||
| Power Supply | V~,Hz,Ph | 220-240/50/1 | ||
| Capacity | Cooling | Btu/h | 12000 | |
| W | 3200 | |||
| Heating | Btu/h | 12000 | ||
| W | 3100 | |||
| Power Input | Cooling | W | 1050 | |
| Heating | W | 920 | ||
| Operating Current | Cooling | A | 4.7 | |
| Heating | A | 4.2 | ||
| EER | W/W | 3.05 | ||
| COP | W/W | 3.37 | ||
| Air Flow | Indoor unit | m³/h | 590 | |
| Noise Level | Indoor unit | dB(A) | 44 | |
| Outdoor unit | dB(A) | 53 | ||
| Net Dimension (W x D x H) | Indoor unit | mm | 750x285x200 | |
| Outdoor unit | mm | 720x545x255 | ||
| Net Weight | IDU/ODU | Kg | 8/29 | |
| Packing Dimension (W x D x H) | Indoor unit | mm | 800x345x265 | |
| Outdoor unit | mm | 850X620X370 | ||
| Refrigerant type/weight | g | R410A/880g | ||
| Max discharge/suction pressure | Mpa | 4.15/1.15 | ||
| Liquid Side/Gas Side | mm/inch | 6.35/12.7 (1/4" / 1/2") | ||
