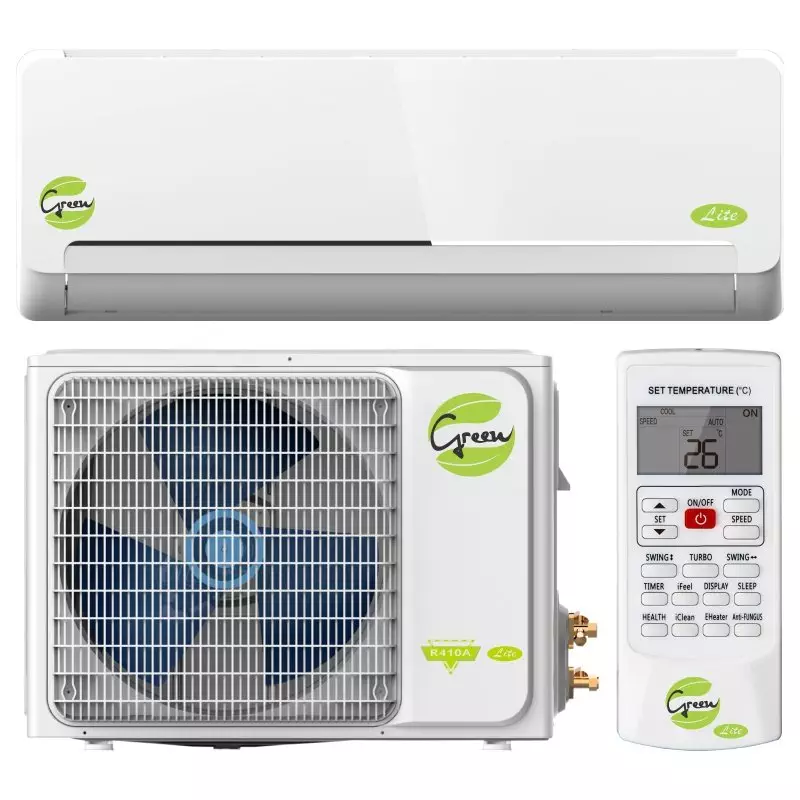

24,000 BTU/HR Midwall Split

The 24000 BTU Midwall Split from Green Air-Conditioning is best suited for home and office use. This aircon will work optimal in rooms with a floor size of up to 40m².

Specifications Summary

  • 24,000 BTU/HR Midwall Split
  • ACM-61H24FV-ZAN
  • R410a
  • Super Quiet Design
Category:
Type of Unit Midwall Split
Model ACM-61H24FV-ZAN Number ACM-61H24FV-ZAN
Power Supply V~,Hz,Ph 220-240/50/1
Capacity Cooling Btu/h 24000
W 6100
Heating Btu/h 24000
W 6200
Power Input Cooling W 2000
Heating W 1850
Operating Current Cooling A 8.9
Heating A 8.2
EER W/W 3.05
COP W/W 3.35
Air Flow Indoor unit m³/h 1200
Noise Level Indoor unit dB(A) 50
Outdoor unit dB(A) 58
Net Dimension (W x D x H) Indoor unit mm 1082x330x233
Outdoor unit mm 880x655x310
Net Weight IDU/ODU Kg 14/49.5
Packing Dimension (W x D x H) Indoor unit mm 1155x397x312
Outdoor unit mm 945x725x435
Refrigerant type/weight g R410A/1590g
Max discharge/suction pressure Mpa 4.15/1.15
Liquid Side/Gas Side mm/inch 6.35/15.88 (1/4" / 5/8")
