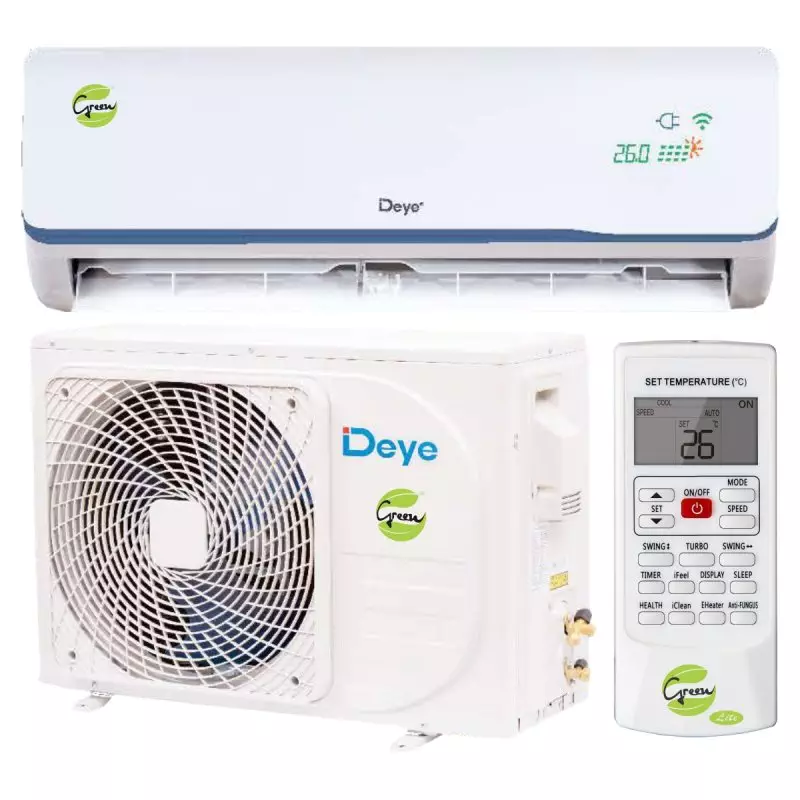

24,000 BTU/HR Midwall Split Inverter Solar

The 24000 BTU Midwall Split Inverter Wi-Fi Solar, On Grid-AC/DC from Green Air-Conditioning is best suited for home and office use. This aircon will work optimal in rooms with a floor size of up to 40m².

Specifications Summary

  • Capacity: 24,000 BTU/HR
  • Model: DGWA1-ACDCBLW-24K
  • Refrigerant Type: R410a
  • Type: Inverter Wi-Fi Solar On Grid ACDC
Type of Unit INVERTER Wi-Fi, SOLAR
Model DGWA1-ACDCBLW-24K
Indoor Power Supply AC V~,Hz 208~240/50-60
Power DC, PV, Series Connection Voc 80-380V
Isc < / = 10A
Cooling Capacity(T1) Btu/h 22000
W 6440
Input(T1) W 1790
Capacity(T3) Btu/h 17500
W 5130
Input(T3) W 1940
EER(T1) (W/W) / BTU/W) 3.60/12.30
EER(T3) (W/W) / BTU/W) 2.65/9.00
Heating Capacity Btu/h 26600
W 7800
Input W 2290
COP (W/W) / BTU/W) 3.40/11.60
Max Power Input W 3500
Dehumidification Capacity L/h 2.5
Indoor Fan Motor Model ZWR45-C51
Brand KAIBANG
Output W 45
Indoor Coil Number of Rows 2
Tube Pitch (a) x Row Pitch (b) mm 21x13.37
Fin Spacing mm 1.3
Fin Type Hydrophilic Aluminium
Tube Outside Dia and Type mm Φ7 Inner grooved Tube
Coil length x height x width mm 850 x 378 x 26.74 (18)
Number of circuits 5
Indoor Unit Dimension  (W x D x H) mm 1080 x 237 x 330
Packaging (W x D x H) mm 1140 x 382 x 300
Net/Gross weight Body Kg 15.0/17.5
Refrigerant Piping Liquid Side/Gas Side mm 12.7/6.35 (1/2"+1/4")
Max. Refrigerant Pipe Length m 25
Max. Difference In Level m 10
Drainage  Pipe mm 16
Refrigerant piping Length m 4
Ambient Temperature Cooling / Heating °C 16~55 / -7~31
Connection Wiring Power Wiring m 5
Expansion valve type / TS118C55
Expansion valve type brand / SANHUA
Compressor Model 5RD198ZAD21
Type 2xRotary
Brand Panasonic
Capacity W 5780
Thermal protector / NO
Thermal protector position / INTERNAL
Capacitor uF NO
Refrigerant Oil / Oil Change ml FV50S / 600
Outdoor Fan Motor Model BLDC ZFK-10407508-DY22
Brand LANGQIWEI
Input W 75
Speed r/min 850
Capacitor uF NO
Outdoor Coil Number of rows 2
Tube Pitch (a) Test Row Pitch mm 25.4 x 22
Fin Spacing mm 1.3
Fin type Hydrophilic Aluminum
Tube outside dia. and type mm Φ9.52 Inner grooved Tube
Coil lenght x height x width mm 855 x 660 x 44 (26)
Number of circuits 4
Outdoor Air Flow m³h 3300
Outdoor noise level dB(A) 58
Outdoor Unit Dimension (W x D x H) mm 900 x 337 x 700
Packaging (W x D x H) mm 1006 x 418 x 755
Net/Gross weight Kg 48.5/54.5
Refrigerant Type / Charged Volume g R410A(1900)
Max Design Pressure (Discharge/Suction) MPa 4.3/1.5
Operation Temperature Range °C 16~32
Application Area 30-40
