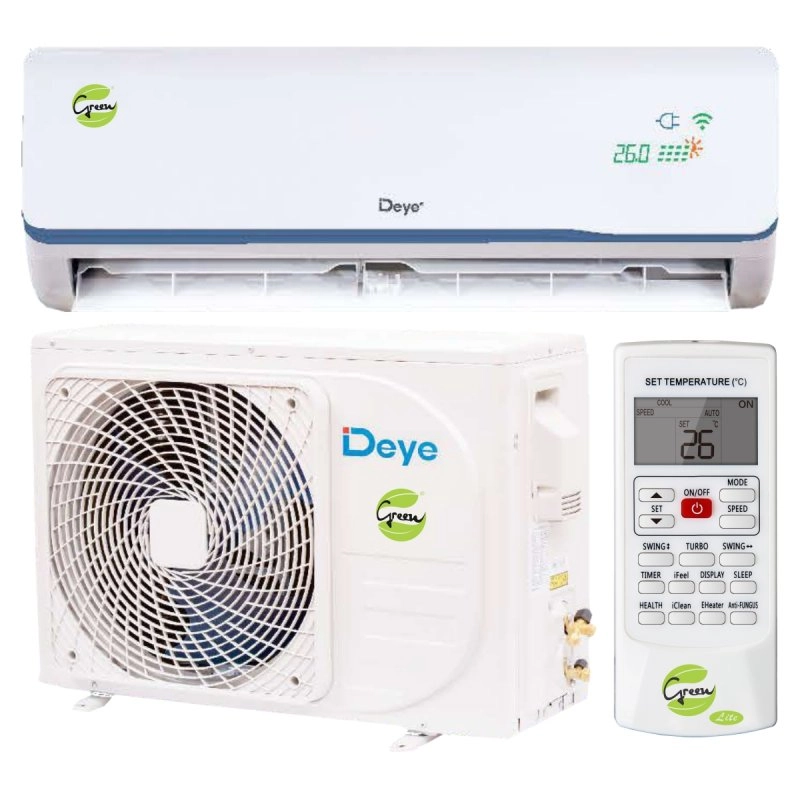

12,000 BTU/HR Midwall Split Inverter Solar

The 12000 BTU Midwall Split Inverter Wi-Fi Solar, On Grid-AC/DC from Green Air-Conditioning is best suited for home and office use. This aircon will work optimal in rooms with a floor size of up to 20m².

Specifications Summary

  • Capacity: 12,000 BTU/HR
  • Model: DGWA2-ACDCBLW-12K
  • Refrigerant Type: R410a
  • Type: Inverter Wi-Fi Solar On Grid ACDC
Type of Unit INVERTER Wi-Fi, SOLAR
Model DGWA2-ACDCBLW-12K
Indoor Power Supply AC V~,Hz 208~240/50-60
Power DC, PV, Series Connection Voc 80-380V
Isc < / = 10A
Cooling Capacity(T1) Btu/h 12000
W 3510
Input(T1) W 940
Capacity(T3) Btu/h 9900
W 2910
Input(T3) W 1050
EER(T1) (W/W) / BTU/W) 3.75/12.75
EER(T3) (W/W) / BTU/W) 2.75/9.45
Heating Capacity Btu/h 14000
W 4100
Input W 1170
COP (W/W) / BTU/W) 3.50/11.95
Max Power Input W 1700
Dehumidification Capacity L/h 1.3
Indoor Fan Motor Model ZWR15-Q52
Brand KAIBANG
Output W 15
Indoor Coil Number of Rows 2
Tube Pitch (a) x Row Pitch (b) mm 21x13.37
Fin Spacing mm 1.3
Fin Type Hydrophilic Aluminium
Tube Outside Dia and Type mm Φ7 Inner grooved Tube
Coil length x height x width mm 650 x 294 x 26.74 (14)
Number of circuits 2
Indoor Unit Dimension  (W x D x H) mm 840 x 295 x 205
Packaging (W x D x H) mm 920 x 360 x 290
Net/Gross weight Body Kg 9.5/11.8
Refrigerant Piping Liquid Side/Gas Side mm 9.52/6.35 (3/8"+1/4")
Max. Refrigerant Pipe Length m 15
Max. Difference In Level m 8
Drainage  Pipe mm 16
Refrigerant piping Length m 3
Ambient Temperature Cooling / Heating °C 16~55 / -7~31
Connection Wiring Power Wiring m 4
Expansion valve type / DPF Q01 16C 112
Expansion valve type brand / SANHUA
Compressor Model WHP04200VRKQA7JT6
Type 2xRotary
Brand HIGHLY
Capacity W 3250
Thermal protector / NO
Thermal protector position / INTERNAL
Capacitor uF NO
Refrigerant Oil / Oil Change ml HAF68D1 / 480
Outdoor Fan Motor Model BLDC ZWR35-A51
ZW465B200013L-Φ8M6
Brand KAIBANG/BROAD-OCEAN
Input W 40
Speed r/min 880
Capacitor uF NO
Outdoor Coil Number of rows 2
Tube Pitch (a) Test Row Pitch mm 21 x 22
Fin Spacing mm 1.3
Fin type Hydrophilic Aluminum
Tube outside dia. and type mm Φ7 Inner grooved Tube
Coil lenght x height x width mm 865 x 504 x 44 (24)
Number of circuits 4
Outdoor Air Flow m³h 2100
Outdoor noise level dB(A) 52
Outdoor Unit Dimension (W x D x H) mm 802 x 323 x 564
Packaging (W x D x H) mm 910 x 405 x 622
Net/Gross weight Kg 33.5/37.5
Refrigerant Type / Charged Volume g R410A(1100)
Max Design Pressure (Discharge/Suction) MPa 4.3/1.5
Operation Temperature Range °C 16~32
Application Area 12-20
