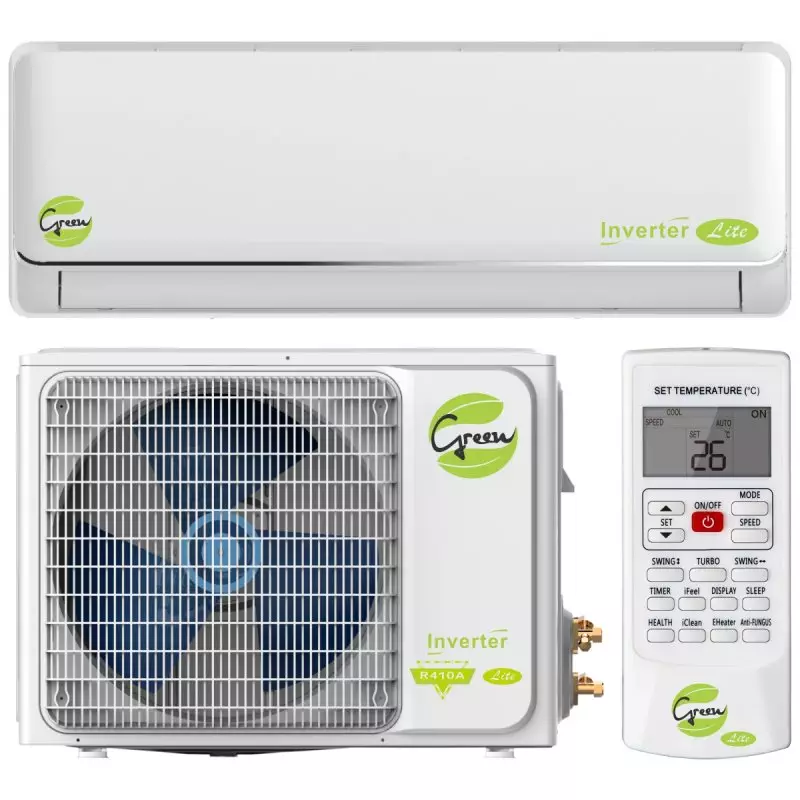

24,000 BTU/HR Midwall Split Inverter
The 24000 BTU Midwall Split Inverter from Green Air-Conditioning is best suited for home and office use. This aircon will work optimal in rooms with a floor size of up to 30m².
Specifications Summary
- Capacity: 24,000 BTU/HR
- Model: CMIGMI-24HRFN1
- Refrigerant Type: R410a
- Type: Super Quiet Design
| Type of Unit | Midwall Split Inverter | |||
|---|---|---|---|---|
| Model CMIGMI-24HRFN1 | Number | CMIGMI-24HRFN1 | ||
| Power Supply | V,Hz,Ph | 220-240/50/1 | ||
| Capacity | Cooling | Btu/h | 24000 | |
| W | 6400 | |||
| Heating | Btu/h | 24000 | ||
| W | 6800 | |||
| Rated Power Consumption | Cooling | W | 1994 | |
| Heating | W | 1884 | ||
| Operating Current | Cooling | A | 8.76 | |
| Heating | A | 8.27 | ||
| EER | W/W | 3.21 | ||
| COP | W/W | 3.61 | ||
| Air Flow | Indoor unit | m³/h | 1150Hi 820Mi 670Lo | |
| Outdoor unit | m³/h | 3500 | ||
| Noise Level | Indoor unit | dB(A) | 48.5Hi 41Mi 34Lo | |
| Outdoor unit | dB(A) | 60 | ||
| Net Dimension (W x D x H) | Indoor unit | mm | 1082x234x337 | |
| Outdoor unit | mm | 890x342x673 | ||
| Net Weight | Indoor unit | Kg | 14.1/17.8 | |
| Outdoor unit | Kg | 41.6/44.7 | ||
| Packing Dimension (W x D x H) | Indoor unit | mm | 1155x415x315 | |
| Outdoor unit | mm | 995x398x740 | ||
| Max. Input Power | W | 3800 | ||
| Max. Input Current | A | 18 | ||
| Refrigerant type/weight | g | R410A/1.48 | ||
| Max discharge/suction pressure | Mpa | 4.2/1.5 | ||
| Connection wiring | 1.5x4// | |||
| Plug type | //no-plug | |||
| Thermostat type | Remote Control | |||
| Operation temperature | ℃ | |||
| Room Temperature | Indoor (cooling/heating) | ℃ | 16～32/0～30 | |
| Outdoor (cooling/heating) | ℃ | 0～50/-15～24 | ||
| Compressor Parameter | Model | KTM240D43UKT | ||
| Type | / | |||
| Brand | GMCC | |||
| Capacity | W | 7600 | ||
| Input | W | 2045 | ||
| Rated Current | A | 9.30 | ||
| Locked rotor Amp | A | / | ||
| Thermal protector | / | |||
| Thermal protector position | NA | |||
| Capacitor | μF | / | ||
| Refrigerant oil/oil charge | ml | VG74/620 | ||
| Indoor Fan Motor | Model | YKFG-45-4-22-13 | ||
| Input | W | 77.0 | ||
| Capacitor | uF | 3 | ||
| Speed (Hi/Mi/Lo) | r/min | 1200/650 | ||
| Outdoor Fan Motor | Model | ZKFN-80-8-3 | ||
| Input | W | / | ||
| Capacitor | uF | / | ||
| Speed (Hi/Mi/Lo) | r/min | 830/700/550 | ||
| Indoor Coil | Rows | 2 | ||
| Tube pitch x row pitch | mm | 21x13.37 | ||
| Fin spacing | mm | 1.3 | ||
| Fin type | Hydrophilic aluminum | |||
| Tube outside dia.and type | mm | Φ7,Inner groove tube | ||
| Coil (W x D x H) | mm | 26.74x820x210+26.74x820x126 | ||
| Number of circuits | 4 | |||
| Outdoor Coil | Rows | 1.6 | ||
| Tube pitch x row pitch | mm | 21x13.37 | ||
| Fin spacing | mm | 1.3 | ||
| Fin type | Hydrophilic aluminum | |||
| Tube outside dia.and type | mm | Φ7,Inner groove tube | ||
| Coil (W x D x H) | mm | 609x900x26.74 | ||
| Number of circuits | 5 | |||
| Refrigerant Piping | Liquid Side/Gas Side | mm/inch | 9.52 (3/8") / 15.9 (5/8") | |
| Max. refrigerant pipe length | m | 30 | ||
| Max. difference in level | m | 20 | ||
| Application area (Cooling Standard) | m² | 29～43 | ||
| Qty’per 20’ /40’ /40'HQ | 64/134/156 | |||
