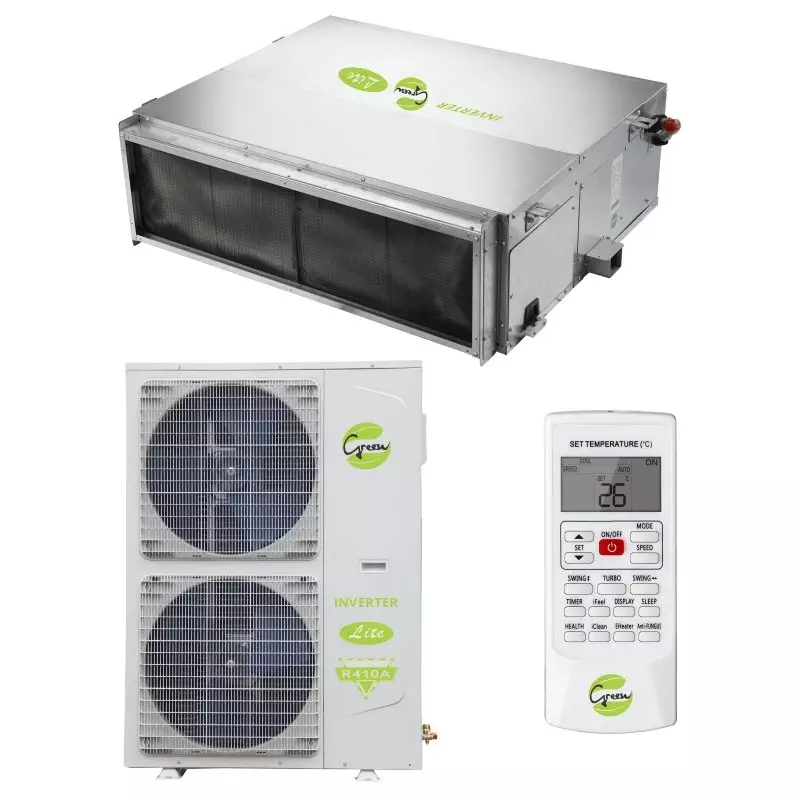

60,000 BTU/HR Ducted Inverter Split
Model: DUCM-H60/5DR1C
Key Features & Benefits
- Inverter Technology – Optimizes energy usage for lower electricity bills.
- High-Capacity 60,000 BTU Output – Suitable for large office and industrial areas up to 100m².
- Concealed Ducted Design – Preserves interior aesthetics while delivering powerful airflow.
- Reliable Performance – Built for demanding environments with heavy-duty operation.
- Professional Installation & Support – Delivered and installed by certified technicians.
Specifications Summary
- Capacity: 60,000 BTU/HR
- Model: DUCM-H60/5DR1C
- Refrigerant Type: R410a
- Type: Inverter
Product Enquiry!
The 60,000 BTU Ducted Inverter Split Air Conditioner is a powerful and energy-efficient solution for office and industrial spaces up to 100m². Designed with inverter technology, it delivers consistent climate control while reducing energy consumption and operational costs.
With C&M Airconditioning & Refrigeration Services, you also get professional installation and expert after-sales support for reliable, long-term performance.
| Type of Unit | DUCTED INVERTER SPLIT | ||
|---|---|---|---|
| Model | DUCM-H60/5DR1C | ||
| Indoor Power Supply | V~,Hz,Ph | 220~240/50/1 | |
| Cooling | Capacity | Btu/h | 55000 |
| kW | 16.12 | ||
| Input | kW | 5.97 | |
| Rated current | A | 10.80 | |
| EER | W/W | 2.80 | |
| Heating | Capacity | Btu/h | 63500 |
| Kw | 18.61 | ||
| Input | kW | 6.08 | |
| Rated current | A | 11.00 | |
| COP | w/w | 3.06 | |
| Indoor Fan Motor | Model | FP300B-ZL | |
| Brand | Welling | ||
| Output Power x Fan Quantity | W | 300 | |
| Capacitor | uF | / | |
| Speed (Hi/Med/Low) | r/min | 1530/1385/1350 | |
| Indoor Coil | Number of Rows | 3 | |
| Tube Pitch (a) x Row Pitch (b) | mm | 20.5 x 12.7 | |
| Fin Pitch | mm | 1.5 | |
| Fin Type | Hydrophilic aluminum Fin | ||
| Tube Outside Dia. and Type | mm | 7 Inner grooved | |
| Coil length x height x width | mm | 1211 x 328 x 38.1 | |
| Number of Circuits | 6 | ||
| Indoor Airflow (Hi/Mi/Lo) | m³/h | 2030/1880/1670 | |
| Indoor noise level (Hi/Mi/Lo) | dB(A) | 53/50/44 | |
| Indoor Unit | Dimension (W x D x H) | mm | 1400 x 245 x 700 |
| Packaging (W x D x H) | mm | 1630 x 300 x 830 | |
| Net/Gross weight | Kg | 47/54 | |
| External Static Pressure | Pa | 80 | |
| Wireless Remote Controller | XK05 | ||
| Outdoor Power Supply | V~,Hz,Ph | 380~415/50/3 | |
| Max Input Consumption | W | 7500 | |
| Compressor | Model | KTF400D66UMVA | |
| Type | Rotary | ||
| Brand | GMCC | ||
| Capacity | W | 13100 | |
| Input | W | 3465 | |
| Rated current (RLA) | A | 6.65 | |
| Locked rotor (LRA) | A | / | |
| Capacitor | uF | / | |
| Refrigerant Oil | ml | 1400 (VG74) | |
| Outdoor Motor Fan | Model | CW85D | |
| Brand | Xinjun | ||
| Output Power x Fan Quantity | W | 85 x 2 | |
| Capacitor | uF | 4 x 2 | |
| Speed | r/min | 770 | |
| Outdoor Coil | Number of rows | 2 | |
| Tube Pitch (a) x Row Pitch (b) | mm | 22 x 19.05 | |
| Fin Pitch | mm | 1.4 | |
| Fin type | Hydrophilic aluminum Fin | ||
| Tube outside dia. and type | mm | 7 Inner grooved | |
| Coil length x height x width | mm | 918 x 1276 x 38.1 | |
| Number of circuits | 9 | ||
| Outdoor Airflow Volume | m³h / CFM | 7000 / 3765 | |
| Outdoor Noise level | dB(A) | 60 | |
| Outdoor Power level | dB(A) | 70 | |
| Outdoor Unit | Dimension (W x D x H) | mm | 940 x 370 x 1325 |
| Packaging (W x D x H) | mm | 1080 x 430 x 1440 | |
| Net/Gross weight | Kg | 90/100 | |
| Refrigerant | Type | R410a | |
| CHarged Volume | KG | 3.45 | |
| Design Pressure | MPa | 4.2 | |
| Connecting Wiring | Power Wiring (Indoor) | mm² | 3 x 1.5 |
| Power wiring (Outdoor) | mm² | 5 x 2.5 | |
| Signal wiring | mm² | 2 × 0.2 | |
| Refrigerant Piping | Liquid Side / Gas Side | mm | 9.52/19.05 (3/8 x 3/4) |
| Max Pipe Length | m | 50 | |
| Max High Drop | m | 30 | |
| Ambient Temp | Cooling | °C | -5~49 |
| Heating | °C | -15~24 | |
| Operation Temprature Range | °C | 16~32 | |
| Ducting | Supply Air Size | mm | 1220x180 |
| Return Air Size | mm | 1280x210 | |
