Product Details

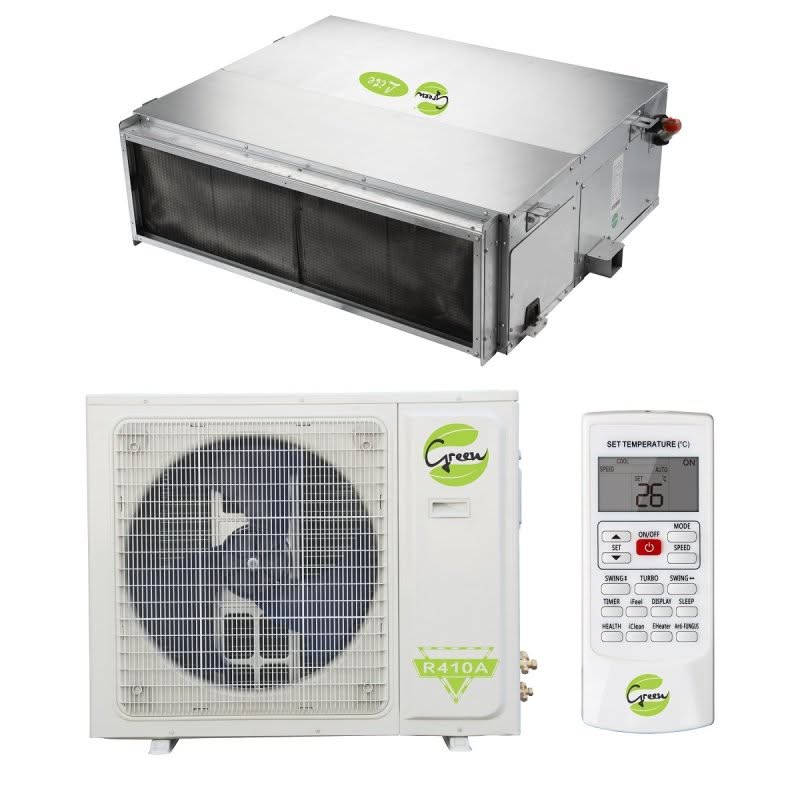

36,000 BTU Ducted Split Air Conditioner
Model: DUCM-H36
Key Features & Benefits
- Powerful 36,000 BTU Output – Suitable for office and industrial spaces up to 60m².
- Discreet Ducted Design – Hidden installation for seamless aesthetics.
- Even Air Distribution – Maintains uniform temperature throughout the room.
- Energy-Efficient Performance – Reduces operational costs while delivering reliable comfort.
- Professional Installation & Support – Expert technicians ensure hassle-free setup and service.
Specifications Summary
- Capacity: 36,000 BTU/HR
- Model: DUCM-H36
- Refrigerant Type: R410a
Product Enquiry!
Deliver powerful and discreet climate control with the 36,000 BTU Ducted Split Air Conditioner, designed specifically for office and industrial applications. Capable of cooling and heating areas up to 60m², this unit offers efficient, concealed performance—ideal for environments requiring consistent comfort without impacting interior design.
With C&M Airconditioning & Refrigeration Services, you get more than just equipment—you benefit from expert installation and professional after-sales support, ensuring reliable, long-term operation.
| Type of Unit | DUCTED SPLIT | ||
|---|---|---|---|
| Model | DUCM-H36 | ||
| Indoor Power Supply | V~,Hz,Ph | 220~240/50/1 | |
| Cooling | Capacity | Btu/h | 36000 |
| kW | 10.60 | ||
| Input | kW | 3.77 | |
| Rated current | A | 17.30 | |
| EER | W/W | 2.81 | |
| Heating | Capacity | Btu/h | 39920 |
| Kw | 11.70 | ||
| Input | kW | 3.50 | |
| Rated current | A | 16.60 | |
| COP | w/w | 3.34 | |
| Indoor Fan Motor | Model | YSK180-4 | |
| Brand | Sanxiang | ||
| Output Power x Fan Quantity | W | 180 x 1 | |
| Capacitor | uF | 6 | |
| Speed (Hi/Med/Low) | r/min | 1200/1120/1060 | |
| Indoor Coil | Number of Rows | 3 | |
| Tube Pitch (a) x Row Pitch (b) | mm | 20.5 x 12.7 | |
| Fin Pitch | mm | 1.6 | |
| Fin Type | Hydrophilic aluminum | ||
| Tube Outside Dia. and Type | mm | Φ7 Inner grooved | |
| Coil length x height x width | mm | 670 x 369 x 38.1 | |
| Number of Circuits | 5 | ||
| Indoor Airflow (Hi/Mi/Lo) | m³/h | 2000/1600/1400 | |
| Indoor noise level (Hi/Mi/Lo) | dB(A) | 50/47/41 | |
| Indoor Unit | Dimension (W x D x H) | mm | 890 x 290 x 735 |
| Packaging (W x D x H) | mm | 1070 x 360 x 800 | |
| Net/Gross weight | Kg | 35/39 | |
| External Static Pressure | Pa | 50 | |
| Wireless Remote Controller | XK05-DY | ||
| Outdoor Power Supply | V~,Hz,Ph | 220~240/50/1 | |
| Max Input Consumption | W | 5400 | |
| Compressor | Model | ATH420MV-C9EU | |
| Type | Twin Rotary | ||
| Brand | Highly | ||
| Capacity | W | 10060 | |
| Input | W | 3470 | |
| Rated current (RLA) | A | 16.6 | |
| Locked rotor (LRA) | A | 80 | |
| Thermal protector Temp. | 165 | ||
| Capacitor | uF | 45 x 2 | |
| Refrigerant Oil | ml | 840 | |
| Outdoor Motor Fan | Model | YDK85-6E | |
| Brand | Welling/Sinjun | ||
| Output Power x Fan Quantity | W | 85 x 1 | |
| Capacitor | uF | 4 | |
| Speed | r/min | 855 | |
| Outdoor Coil | Number of rows | 2 | |
| Tube Pitch (a) x Row Pitch (b) | mm | 22 x 19.05 | |
| Fin spacing | mm | 1.5 | |
| Fin type | Hydrophilic aluminum | ||
| Tube outside dia. and type | mm | Φ7 Inner grooved | |
| Coil length x height x width | mm | 983 x 748 x 38.1 | |
| Number of circuits | 6 | ||
| Outdoor Airflow Volume | m³h / CFM | 3850 / 2265 | |
| Outdoor noise level | dB(A) | 60 | |
| Outdoor Unit | Dimension (W x D x H) | mm | 970 x 395 x 805 |
| Packaging (W x D x H) | mm | 1105 x 495 x 895 | |
| Net/Gross weight | Kg | 65/75 | |
| Refrigerant | Type/Quantity | g | R410a/2200 |
| Design Pressure | MPa | 4.4/1.4 | |
| Connecting Wiring | Power Wiring (Indoor) | mm² | / |
| Power wiring (Outdoor) | mm² | 3 x 4 | |
| Signal wiring | mm² | 3 × 1 + 3 x 1 | |
| Refrigerant Piping | Liquid Side / Gas Side | mm | 9.52/15.88 (3/8 x 5/8) |
| Max Pipe Length | m | 30 | |
| Max High Drop | m | 20 | |
| Ambient Temp | Cooling | °C | -5~49 |
| Heating | °C | -15~24 | |
| Ducting | Supply Air Size | mm | 660 x 205 |
| Return Air Size | mm | 895 x 300 | |
