Product Details

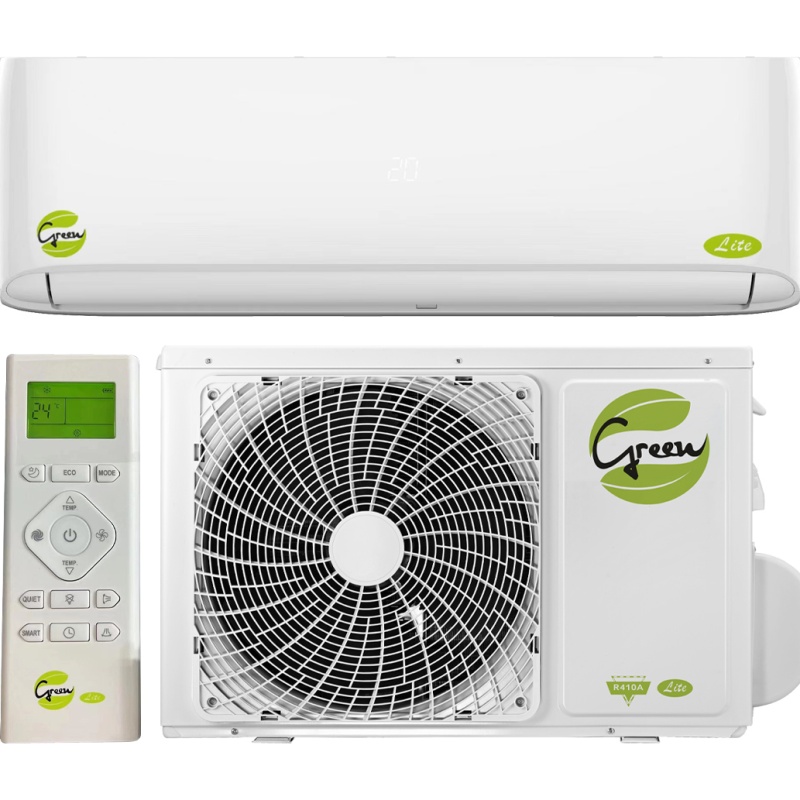

18,000 BTU Midwall Split H Series Air Conditioner
Model: CM-AS-18HW4SXSCA01
Key Features & Benefits
- Compact & Powerful Design – Ideal for rooms up to 30m².
- H Series Technology – Optimized efficiency and performance.
- Energy-Efficient Refrigerant (R410a) – Environmentally friendly and cost-effective.
- Quiet Operation – Delivers comfort without disruptive noise.
- Professional Installation & Support – Certified technicians for expert setup and maintenance.
Specifications Summary
- Capacity: 18,000 BTU/H
- Model: CM-AS-18HW4SXSCA01
- Refrigerant Type: R410a
- H-Series
Product Enquiry!
The 18,000 BTU Midwall Split H Series Air Conditioner is designed to deliver efficient cooling and heating for homes and offices up to 30m². Featuring advanced H-Series technology and R410a refrigerant, it ensures superior energy efficiency while providing a quiet and comfortable environment.
With C&M Airconditioning & Refrigeration Services, you also benefit from professional installation and expert after-sales support, ensuring optimum performance and long-term reliability.
| Unit | Midwall Split | ||
|---|---|---|---|
| Model | CM-AS-18HW4SXSCA01 | ||
| Type | Heat pump | ||
| Capacity | Cooling | Btu/h | 18,000 |
| W | 5,000 | ||
| Heating | Btu/h | 18,000 | |
| W | 5,200 | ||
| Power Input | Cooling | W | 1,625 |
| Heating | W | 1,510 | |
| Air Circulation | CMH Max | 950 | |
| EER | W/W | 3.08 | |
| COP | W/W | 3.44 | |
| Energy Consumption | kWh/year | 812.5 | |
| Refrigerant type / weight | g | R410A / 1,250 | |
| Noise Level | Indoor unit | dB(A) | 43 (High) |
| Outdoor unit | dB(A) | 54 | |
| Power Supply | |||
| Power Supply | V-Hz-Ph | 220-240/50/1 | |
| Rated Current | Cooling | A | 7.3 |
| Heating | A | 6.8 | |
| LRA | A | 41 | |
| System | |||
| Compressor Parameter | Model | PA196G2C-4KTL | |
| Type | Rotary | ||
| MFG | GMCC | ||
| Expansion Device | Flow Restrictor | ||
| Evaporator | Copper tube and Aluminum Fin | ||
| Condenser | Copper tube and Aluminum Fin | ||
| Connecting Pipe Diameter | |||
| Pipe | Liquid | mm/inch | 6.35 / 1/4" |
| Gas | mm/inch | 12.7 / 1/2" | |
| Other | |||
| Net Dimension (W x D x H) | Indoor unit | mm | 890×220×300 |
| Outdoor unit | mm | 810×280×585 | |
| Net Weight | Indoor unit | Kg | 10 |
| Outdoor unit | Kg | 41 | |
| Packing Dimension (W x D x H) | Indoor unit | mm | 960×300×365 |
| Outdoor unit | mm | 940×385×630 | |
| Gross Weight | Indoor unit | Kg | 12 |
| Outdoor unit | Kg | 45 | |
| Features | |||
| Display on Front Panel | LED | ||
| LCD Wireless Remote Controller | |||
| Removable and Washable Panel | |||
| High Density Filter | |||
| Dimmer | |||
| 24 Hours Timer | |||
| Timer ON/OFF | |||
| 3 Speed and Auto Indoor Fan Control | |||
| Horizontal Auto Swing Louver | |||
| Manual Adjustable Vertical Louver | |||
| Top Down Horizontal Louvers Features for Cooling Mode | |||
| Sleep Function | |||
| Super Function | |||
| Compressor Indicator | |||
| Auto Restart | |||
| Auto Defrost | |||
| Cold Air Protection | |||
