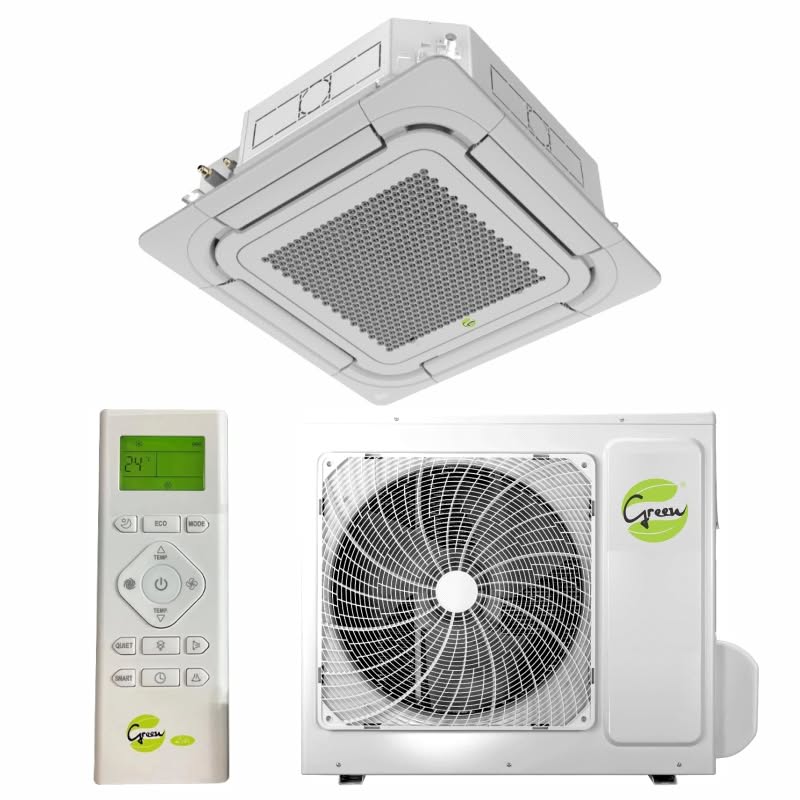

18,000 BTU Ceiling Cassette H Series Air Conditioner

Model: CM-C18NI-I

Key Features & Benefits

  • Discreet Ceiling Cassette Design – Blends effortlessly with modern interiors.
  • Powerful 18,000 BTU Cooling & Heating – Ideal for spaces up to 30m².
  • Even Airflow Distribution – Ensures consistent comfort across the entire room.
  • Quiet & Energy Efficient – Enjoy comfort without intrusive noise or excessive power consumption.
  • Professional Installation Available – Trained technicians for fast, high-quality installation.

Specifications Summary

  • Capacity: 18,000 BTU/HR
  • Model: CM-C18NI
  • Refrigerant Type: R410a
  • H-Series
Product Enquiry!
Category: Tag:

Upgrade your comfort with the 18,000 BTU Ceiling Cassette H Series Air Conditioner, designed for seamless integration into homes and office spaces. Perfect for areas up to 30m², this ceiling-mounted solution delivers powerful, even airflow while maintaining a sleek and unobtrusive appearance.

At C&M Airconditioning & Refrigeration Services, we provide not only the product but also professional installation and reliable after-sales support, ensuring optimal performance and long-term satisfaction.



Indoor Model CM-C18NI-I
Panel PE-BA-B29
Electric Parameter
Power Supply Indoor V-ph-Hz 220-240/1/50
Outdoor V-ph-Hz 220-240/1/50
Input Consumption Max W 2,355
Input Current Max A 10.50
Cooling
Capacity Nominal Btu/h 17,060
W 5,000
Min - Max W NA
Input Nominal W 1,720
Current A 7.5
EER W/W 2.91
Heating
Capacity Nominal Btu/h 19,790
W 5,800
Min - Max W NA
Input Nominal W 1,605
Current A 7.0
COP W/W 3.61
Indoor Fan Motor
Model YDK95-28-4-B
Quantity 1
Input W 69
Capacitor μF 2.0
Speed (Hi / Medium / Low) r/min 980/840/720
Indoor Coil
Number of Rows 2
Tube Pitch (a) x Row Pitch (b) mm 21 x 13.6
Fin Spacing mm 1.5
Fin Type Hydrophilic Aluminium
Tube Outside Diameter & Type mm Φ7, Innergroove Tube
Coil Length x Height x Width mm 1,281 x 210 x 27.2
Number of Circuits 3
Indoor Unit
Dimension W x H x D mm 650 x 270 x 570
Packaging W x H x D mm 770 x 310 x 750
Weight Net / Gross kg 20/27
Air Volume Hi / Medium / Low m³/h 800 / 700 / 600
CFM 470 / 412 / 353
Sound Level (SPL) db(A) 46 / 44 / 42
Sound Level (PWL) Hi db(A) NA
External Static Pressure Rated Pa NA
Before Shipment Pa NA
Range Pa NA
Controller Type Wireless
Model J1-06 (E)
L1-12 (E)
R2-01 (E)
Drainage Water Pipe Diameter mm dΦ21
Drainage Water Pipe Diameter Standard
Air Filter Standard
Throttle Type NA
Booster Heater kW NA
Design Pressure H/L MPa 4.8 / 1.6
Panel
Dimension W x H x D mm 650 x 30 x 650
Packing W x H x D mm 730 x 130 x 730
Room Temperature
Setting Temperature Range Cooling ℃ 16~30
Heating ℃ 16~30
Outdoor Model CM-C18NI-O
Compressor
Model QXA-D19F030A
Type Rotary
Brand Zhuhai Landa
Capacity Btu/h 15,883
Input W 1,540
Rated Current (RLA) A 7.2
Locked Rotor Amp (LRA) A 46
Thermal Protector Position Internal
Capacitor μF 50
Refigerant Oil Model ATMOS-RB68EP
Amount ml 600
Outdoor Fan Motor
Model DG13Z1-75
Quantity 1
Input W 80
Capacitor μF 50
Speed r/min 910
Outdoor Coil
Number of Rows 2
Tube Pitch (a) x Row Pitch (b) mm 21 x 18.19
Fin Spacing mm 1.4
Fin Type Hydrophilic Aluminium
Tube Outside Diameter & Type mm Φ7, Innergroove Tube
Coil Length x Height x Width mm 745 x 546 x 36.38
Number of Circuits 4
Outdoor Unit
Dimension W x H x D mm 810 x 585 x 280
Packaging W x H x D mm 940 x 640 x 420
Weight Net / Gross kg 42/45
Air Volume Hi m³/h
Sound Level (SPL) db(A) 54
Sound Level (PWL) db(A) NA
Refrigerant Type R410A
Amount kg 1.30
TCO2Eq 2.714
GWP 2,088
Throttle Type Throttle Valve
Design Pressure H/L MPa 4.8 / 1.6
Refrigerant Piping
Liquid / Gas mm (inch) Φ6.35 / Φ12.7 (1/4" / 1/2")
Pipe Length Max m 25
Height Difference Max (OD Lower) m 15
Max (OD Heigher) m 15
ADD Refrigerant Amount g/m 15
Pipe Length For Additional Refrigerant m 5
Operating Range
Cooling ℃ -15~43
Heating ℃ -10~24
